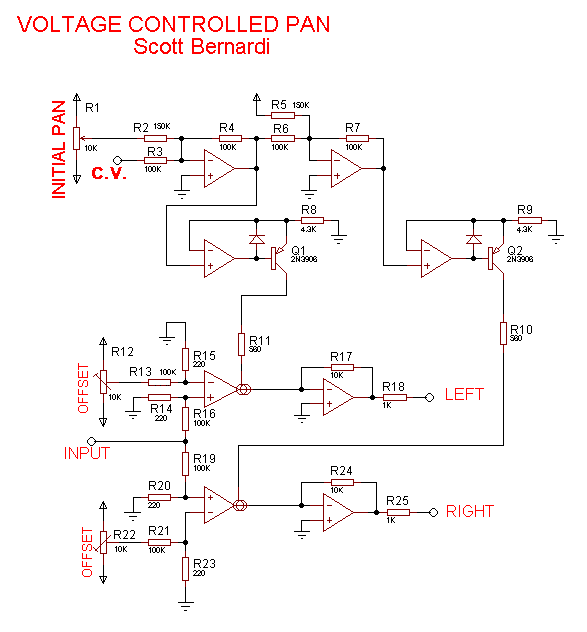

Voltage Controlled Pan


  • Mixes a single input to Left and Right outputs based on position of Initial Pan control and control voltage
  • +/-5v control voltage will pan between full left and full right when Initial Pan is at center (meant to be controlled from LFO)
  • Notes

    Control voltage rejection trim: R12 and R22 Offset trimmers are actually control voltage rejection trimmers. Apply a slow AC signal to the control voltage inputs; adjust R12 for minimum Left channel output, and R22 for minimum Right channel output.
