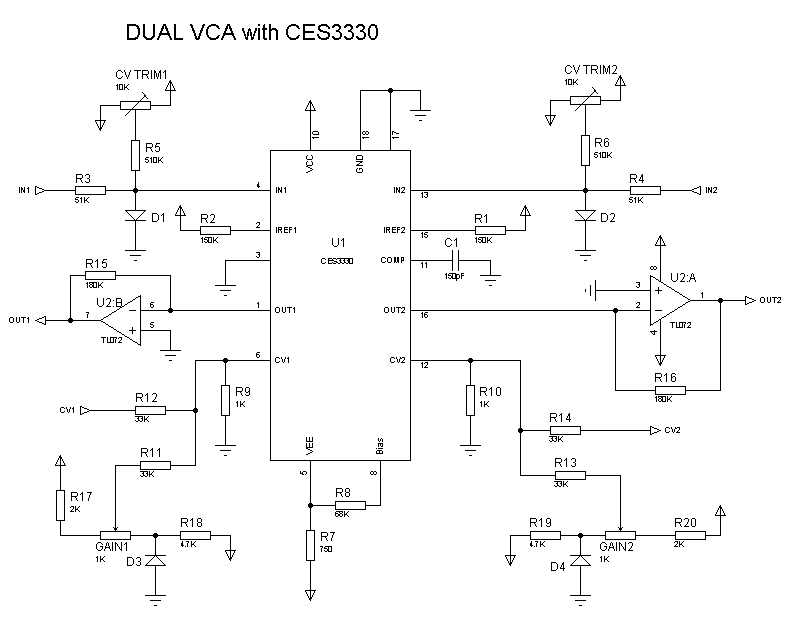

Dual VCA using CES 3330

Features

  • Two high quality VCA's on one chip
  • Exponential and Linear control voltage inputs
  • Gain control

    • Notes

    Just about any opamps can be used.

    Control voltage rejection trim: Apply a low frequency sinewave to Linear C.V. inputs. Adjust CVTRIM's for minimum output.
