Ring modulator using LM1496 balanced modulator chip. Based on a subcircuit of PAIA's 9710 module. My mods permit DC coupling of both X and Y inputs.

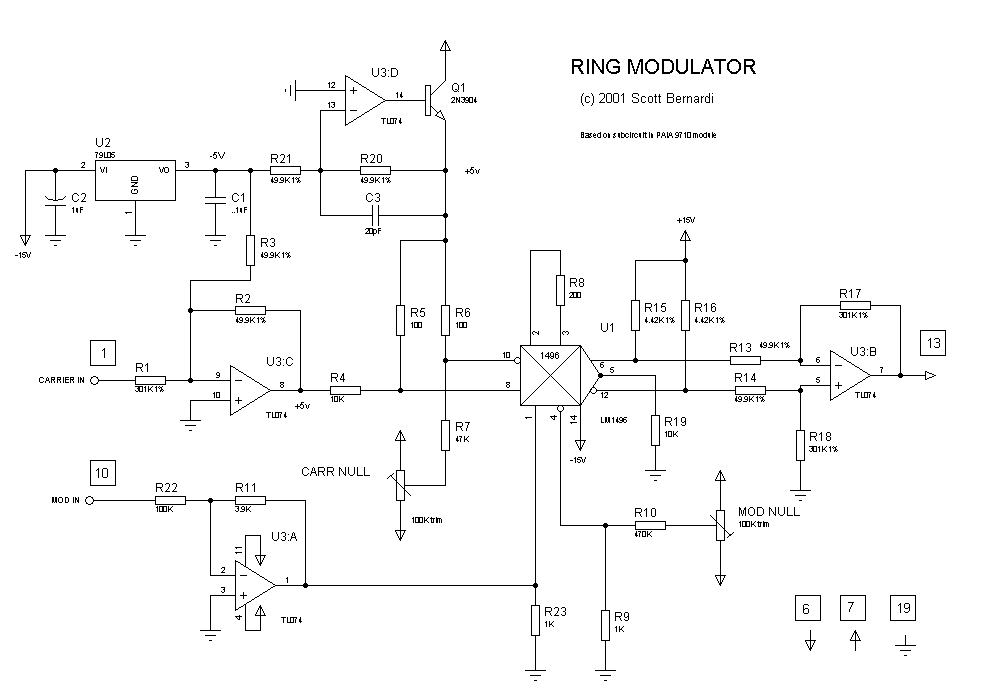

Ring Modulator schematic Ring Modulator Bill of Materials

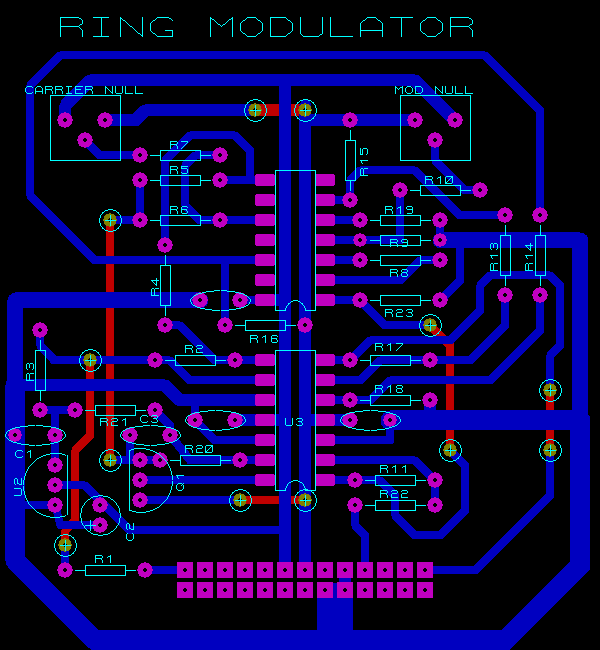

Ring Modulator PCB 2x size
