Noise Source

• Uses reverse biased transistor BE junction
• White and pink noise outputs
• Low frequency random output

Status

PCB built and stuffed PCB tested and working Wired to front panel and tested

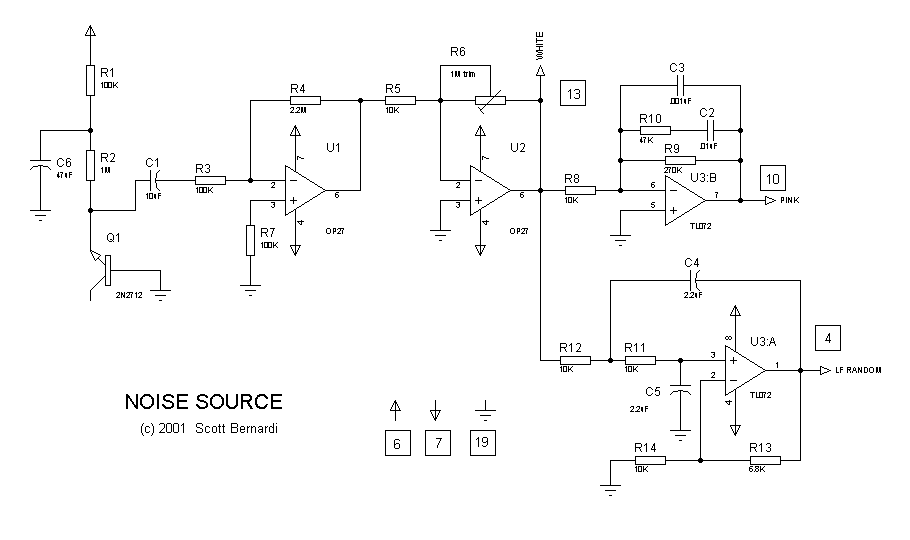

Noise schematic
Noise Source Bill of Materials

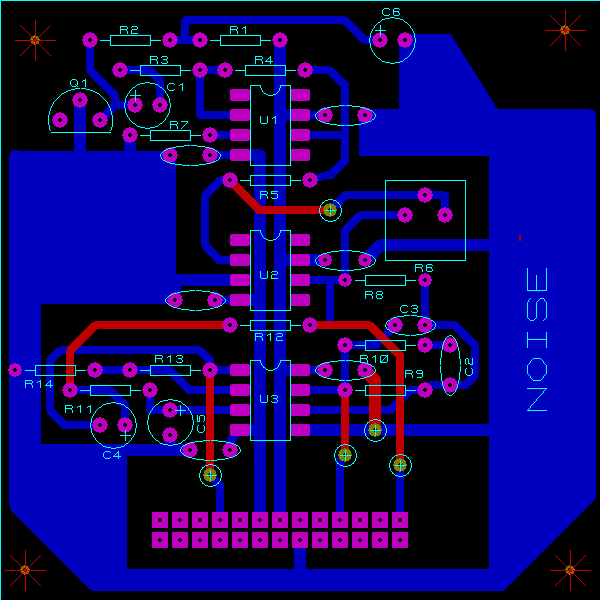

Noise PCB 2x size
