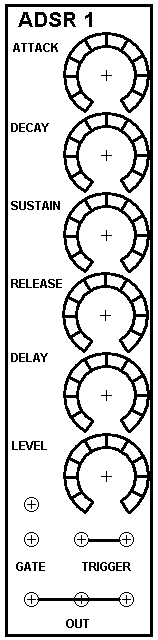

ADSR with VC Delay

ADSR based on CEM3310 chip.

• Exponential VC Delay (hold) delays before output is triggered
• Re-triggerable
• Push button for manual triggering
• Output level control
• LED indicates attack phase

Status

PCB built and stuffed PCB has bugs Design reworked and PCB modified PCB tested and working

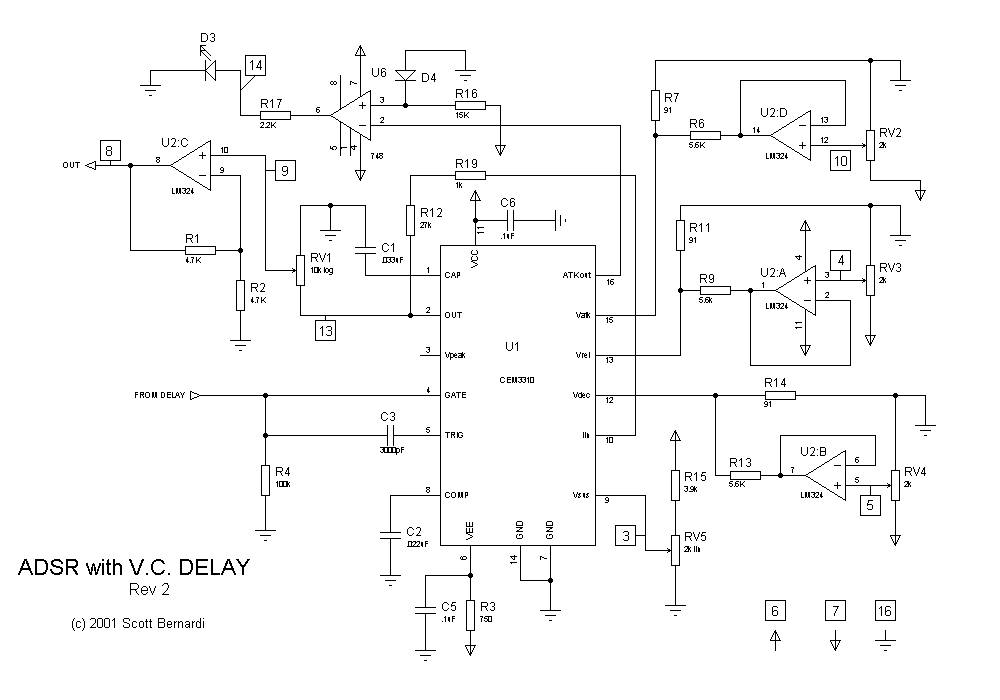

CEM3310 ADSR schematic

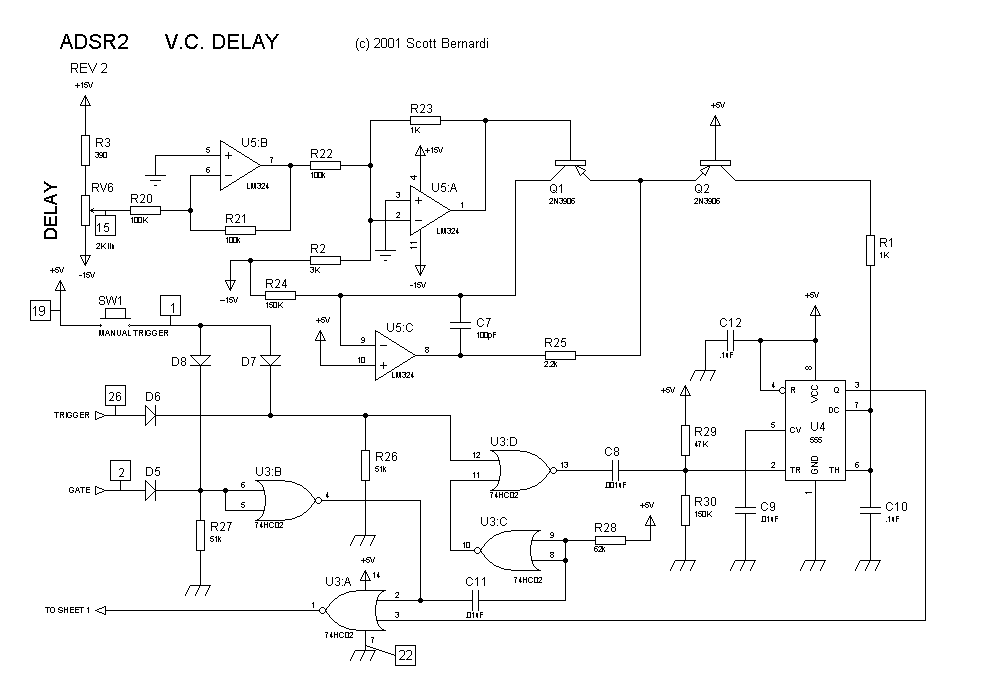

VC Delay schematic
